Flip-Flops in Electronics: Understanding the most widely used type
January 27, 2025 - Reading time: 4 minutes
Flip-flops are fundamental building blocks in digital electronics, used for storing binary data and implementing sequential logic circuits. These bistable circuits have two stable states, allowing them to store a single bit of information (0 or 1). They operate based on clock signals and are capable of maintaining their state until triggered to change. Flip-flops are widely used in memory devices, registers, counters, and various digital applications. In modern microprocessors, millions of flip-flops work together to handle data storage and processing efficiently. For example, a standard 32-bit register file in a processor can contain over 100,000 flip-flops. Flip-flops also play a crucial role in high-speed computing, with some operating at clock speeds exceeding 5 GHz in advanced processors. Their low power consumption, typically in the range of microwatts per flip-flop, makes them essential in battery-operated devices such as smartphones and embedded systems.
Types of Flip-Flops
Several types of flip-flops exist, each serving specific functions in digital circuits. The primary types include:
- SR Flip-Flop (Set-Reset)
- D Flip-Flop (Data or Delay)
- JK Flip-Flop
- T Flip-Flop (Toggle)
Each type has its characteristics and applications, but one stands out as the most commonly used in modern electronics.
The Most Widely Used Flip-Flop: The D Flip-Flop
Among all flip-flop types, the D flip-flop is the most widely used due to its simplicity and reliability in storing data. It is designed to eliminate the indeterminate states found in SR flip-flops by ensuring that the output precisely follows the input at the moment of a clock pulse.
Working Principle of D Flip-Flop

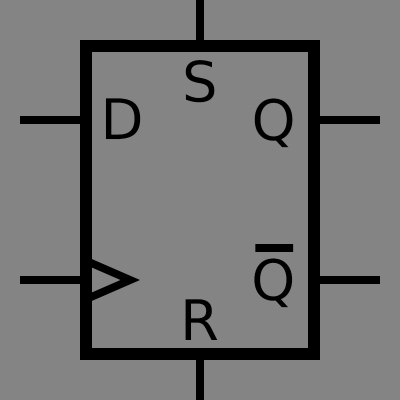

Schema Wikipedia.org
The D flip-flop has two primary inputs:
- D (Data): The input data bit
- Clock (CLK): Controls when data is transferred to the output
When the clock pulse is applied, the value of the D input is transferred to the output (Q). The stored value remains unchanged until the next clock pulse. This characteristic makes it ideal for edge-triggered applications.
Applications of D Flip-Flop
Due to its stability and efficiency, the D flip-flop is extensively used in:
- Data storage: Found in shift registers, latches, and RAM cells.
- Counters: Used in synchronous counters for reliable counting operations.
- Edge-triggered circuits: Ensures data is captured precisely during clock transitions.
- Synchronization circuits: Helps in removing metastability in digital systems.
Other Important Flip-Flops
While the D flip-flop dominates digital applications, other flip-flops have specific uses:
- JK Flip-Flop: More versatile than SR flip-flops, useful in toggle operations.
- T Flip-Flop: Primarily used in frequency dividers and binary counters.
Conclusion
Flip-flops play a crucial role in digital electronics, enabling data storage and sequential logic operations. While several types exist, the D flip-flop is the most widely used due to its simplicity, reliability, and effectiveness in various applications. Understanding its functionality and applications is essential for anyone working with digital systems and embedded electronics.
